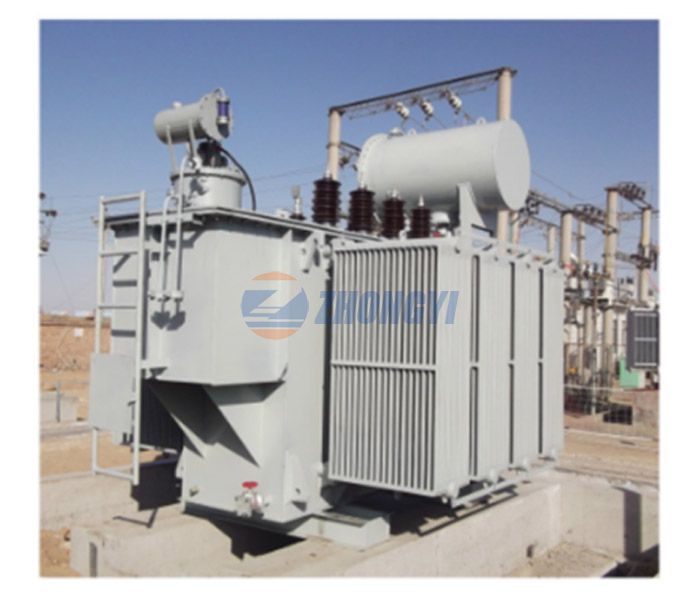

ZS Series-Rectifier Transformer

Rectifier transformer is the power transformer of rectifier equipment. The characteristic of the rectifier equipment is that the primary side inputs AC, and the secondary side outputs DC after passing through the rectifier element.

Product Description

Rectifier transformers are widely used in electrolytic electrochemistry, transmission, traction, electrostatic precipitators, DC transmission and other systems which need direct current power supply. Our rectifier transformer absorbed the excellent experiences of same industry at home and abroad. Raw materials such as high magnetic silicon steel sheet and high quality oxygen free copper wire are used. We adopt production technology such as advanced integral assembly per phase for windings, the core are laminated by five step-lap method to reduce iron loss and noise, crimped winding connections, precision machining for tank surface and so on, which make technologic performance at the leading level in domestic. We can design and manufacture various types of products according to user’s requirement.


Product Features

Rectifier transformer is the power transformer of rectifier equipment. The characteristic of the rectifier equipment is that the primary side inputs AC, and the secondary side outputs DC after passing through the rectifier element. Variable current is the general term for three working modes of rectification, countercurrent and frequency conversion. Rectification is the most widely used one. The transformer used as the power source of the rectifier is called a rectifier transformer. Most industrial rectified DC power supplies are obtained from the AC grid through rectifier transformers and rectifier equipment.

Rectifier transformer is the power transformer of rectifier equipment. The characteristic of the rectifier equipment is that the primary side inputs AC, and the secondary side outputs DC after passing through the rectifier element. The transformer used as the power source of the rectifier is called a rectifier transformer. Most industrial rectified DC power supplies are obtained from the AC grid through rectifier transformers and rectifier equipment.

Rectifier transformer is a transformer specially designed for rectifier system.

Rectifier transformer function

1. Is to supply the proper voltage of the rectification system;

2. It is to reduce the pollution of the power grid caused by the waveform distortion caused by the rectification system.

The use of rectifier transformer

Widely used in lighting, machine tool electrical appliances, mechanical and electronic equipment, medical equipment, rectifiers, etc. Product performance can meet various special requirements of users.

1. Electrochemical Industry

This is the industry that uses the most rectification, electrolysis of non-ferrous metal compounds to produce aluminum, magnesium, copper and other metals; electrolysis of salt to produce chlor-alkali; electrolysis of water to produce hydrogen and oxygen.

2. DC power supply for traction

DC power grid for mine or city electric locomotives. Because the valve side is connected to the overhead line, there are many short-circuit faults, the DC load variation is large, and the electric locomotive often starts, causing short-term overload to varying degrees. For this reason, the temperature rise limit and current density of this type of transformer are both low. The impedance is about 30% greater than the corresponding power transformer.

3. DC power supply for transmission

It is mainly used to supply power to DC motors in electric drives, such as the armature and excitation of rolling mills.

4. For DC transmission

The voltage of this type of rectifier transformer is generally above 110kV, and the capacity is tens of thousands of kilovolt-amperes. Special attention should be paid to the AC and DC superposition of ground insulation.

In addition, there are DC power supplies for electroplating or electrical processing, DC power supplies for excitation, DC power supplies for charging and electrostatic dust removal, etc.


Model and Meaning

Technical Parameter of Rectifier Transformer

Model No.(kVA)Rated capacityRated Voltage Connection Group SymbolWeight|(kg)
(KV)grid side(V)Valve sideWeight for Active partsOil WeightTotal Weight
ZSS-400/1040010430Dyn1110153801780
ZSS-500/65006.3400Dyn1114205802800
ZSS-630/66306.3400Dyn1115506203040
ZSS-650/365033150Dyn1112555402460
ZSS-800/68006400Dyn1115767053045
ZSS-1000/610006440Dyn1118378383580
ZSS-1000/10100010420Dyn1121128973860
ZSS-1250/10125010440Dyn11220510904410
ZSS-1500/101500103300Dyn11286012055260
ZSS-1600/616006.3400Yyn11268011455160
ZSS-1600/10160010420Dyn11311011505500
ZSS-1600/10160010660Dd0275012405310
ZSS-1750/101750106300Dyn11279011905320
ZSS-1800/10180010650Dd0306013455795
ZSS-1900/101900103300Yd11335317197180
ZSS-2000/10200010660Dd0318519907750
ZSS-2300/10230010420Dyn11357014957020
ZSS-2400/10240010750Dyn11363515357185
ZSS-2500/10250010630Dyn11418015827390
ZSS-2500/625006.3630Dd0426019457980
ZSS-2600/102600103300Yd1391720158845
ZSS-2700/627006.3630Dyn11450019908325
ZSS-2850/10285010660Dd0424018107910
ZSS-3000/630006660Dd0420317447843
ZSS-3150/10315010630Dd0491119938870
ZSS-3400/634006660Dd0473319338706
ZSS-3700/10370010630Dyn115505229510090
ZSS-4000/104000103300Dd05817260411640
ZSS-4650/104650101150Dy56185280012000
ZSS-5000/105000106600Dyn116800275012600
ZSSFP7300/107300106600Dyn119325364016620
ZSSFP8100/108100106600Dyn1111400383517940
ZSSFP9000/109000103300Yd110280581022500
ZSS-10000/1010000103300Yd111400688025680
ZSSFP-12500/3512500351130Dd016035648027150
ZSSFP-14000/351400035900Dyn1118030823534290
ZSSFP-16300/3516300351100Dyn1120010895037680



Technical Parameters

Rectifier transformer repair and maintenance

Rectifier transformer common problem

1. What are the cooling media of the rectifier transformer?

There are generally three kinds of media that can be used to bring heat out of the inverter: air, water and oil. The heating components of the high-voltage inverter are mainly two parts: one is the rectifier transformer, and the other is the power component. In the early days, the transformer mainly used oil cooling, that is, immersing the transformer in the oil tank. Because the specific heat of oil is higher than that of air and the insulation strength is high, this cooling method is the mainstream heat dissipation of high-power transformers. However, due to the need for maintenance of oil products, the seal at the outlet is not easy to solve. With the advancement of insulation materials, dry-type transformers have become dominant at low and medium power levels. Dry-type transformers are cooled by air. The transformer can also be water-cooled, that is, the coil of the transformer is made hollow, and pure water is passed inside to use the pure water to take away the heat.

2. Why does the current source inverter require a larger transformer capacity?

The design of the transformer generally only looks at the rated capacity, not the rated power, because its current is only related to the rated capacity. For the voltage source type inverter, since its input power factor is close to 1, the rated capacity is almost equal to the rated power. This is not the case with current source inverters. The power factor of the input side transformer is at most equal to the power factor of the load asynchronous motor, so for the same load motor, the rated capacity is larger than the transformer of the voltage source inverter.
