SG (B) 10 series Non-encapsulated H-class Dry-type Power Transformers

Product Description

SG (B) 10 series of non-encapsulated H-class dry-type power transformers adopt the special process technology of German (MORA) dry-type transformers to ensure that the products fully meet the requirements such as fire prevention, waterproof ,environmental protection. It is the ideal product for distribution systems and widely used in the subway, shipbuilding, mining, chemical, power companies and personnel-intensive buildings as well as other special requirements of the occasion for safety.

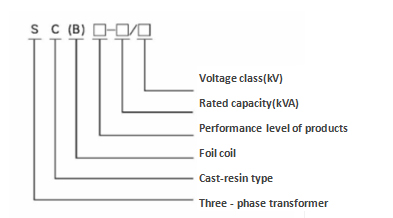

Model and Meaning

SC(B)10 Series Resin-insulated Dry Type Transformer

SG (B) 10 series Non-encapsulated H-class Dry-type Power Transformers

SG (B) 10 series Non-encapsulated H-class Dry-type Power Transformers

Technical Parameter for 6kV, 10kV& 30kVA-2500kVA With Off Circuit Dry Type Transformer

Rated capacity（KVA）	Voltage Combination			Connection Group Symbol	No-load Loss（W）	Load Loss （W）				No-load Current (%)	Short-circuit Impedance（%）
Rated capacity（KVA）	High Voltage (KV)	Tapping ranges of High Voltage	Low Voltage(KV)	Connection Group Symbol	No-load Loss（W）	130℃（B）（100℃）		155℃（F）（120℃）	180℃（H）（145℃）	No-load Current (%)	Short-circuit Impedance（%）
30	66.36.61010.511	±2X2.5%±5%	0.4	Dyn11Yyn0	190	670		710	760	2.0	4.0
50					270	940		1000	1070	2.0
80					370		1290	1380	1480	1.5
100					400	1480		1570	1690	1.5
125					470	1740		1850	1980	1.3
160					540	2000		2130	2280	1.3
200		±2X2.5%±5%			620	2370		2530	2710	1.1
250					720	2590		2760	2960	1.1
315					880	3270		3470	3730	1.0
400					980	3750		3990	4280	1.0
500					1150	4590		4880	5230	1.0
630					1340	5530		5880	6290	0.85
630					1300	5610		5960	6400	0.85	6.0
800					1520	6550		6960	7460	0.85
1000					1770	7650		8130	8760	0.85
1250					2090	9100		9690	10300	0.85
1600					2450	11000		11700	12500	0.85
2000					3050	13600		14400	15500	0.70
2500					3600	16100		17100	18400	0.70
1600					2450	1220		12900	13900	0.85	8.0
2000					3050	15000		15900	17100	0.70
2500					3600	17700		18800	20200	0.70

Notes: The load losses listed in the table are the values of the reference temperature for different insulation systems in parentheses; The load losses under other insulation system temperatures that are not included in the table should be according to their respective reference temperatures, the corresponding calculation is based on the"- 155 ℃ (F)" insulation system temperature data.

Notes: The Dimension and weight will be changed according to the requirements. These two data in the table will be subject to the factory documents.

Technical Parameter for 20kV & 50kVA-2500kVA With Off Circuit Dry Type Transformer

（KVA）Rated capacity	Voltage Combination			Connection Group Symbol	No-load Loss（W）	Load Loss （W）				No-load Current (%)	Short-circuit Impedance（%）
（KVA）Rated capacity	High Voltage (KV)	Tapping ranges of High Voltage	Low Voltage(KV)	Connection Group Symbol	No-load Loss（W）	130℃（B）（100℃）		155℃（F）（120℃）	180℃（H）（145℃）	No-load Current (%)	Short-circuit Impedance（%）
50	202224	±2.5%±5% ±5% ±2×2.5%	0.4	Dyn11Yyn0	340	1160		1230	1310	2.0	5.0
100					540	1870		1990	2130	1.8
160					6701.90.7301.8		2350	2470	3460	1.8
200		±2X2.5%±5%			730	2770		2940	3140	1.8
250					840	3220		3420	3660	1.8
315					970	3850		4080	4360	1.8
400					1150	4650		4840	5180	1.1
500					1350	5460		5790	6190	1.1
630					1530	6450		6840	7320	1.0
800					1750	7790		8260	8840	1.0
1000					2070	9220		9780	10400	0.85
1250					2380	10800		11500	12300	0.85
1600					2790	13000		13800	14800	0.85
2000					3240	15400		16300	17500	0.70	8.0
2500					38700.61950191400.62340222200.5	18200		19300	20700	0.70
2000					3240	16800		17800	19100	0.70
2500					3870	20000		21200	22700	0.70

Technical Parameter for 35kV & 50kVA-2500kVA With Off Circuit Dry Type Transformer

（KVA）Rated capacity	Voltage Combination			Connection Group Symbol	No-load Loss（W）			Load Loss （W）			No-load Current (%)	Short-circuit Impedance（%）
（KVA）Rated capacity	High Voltage (KV)	Tapping ranges of High Voltage	Low Voltage(KV)	Connection Group Symbol	No-load Loss（W）			130℃（B）（100℃）	155℃（F）（120℃）	180℃（H）（145℃）	No-load Current (%)	Short-circuit Impedance（%）
50	35363738.5	±2.5%±5% ±5% ±2×2.5%	0.4	Dyn11Yyn0	450			1340	1420	1520	2.3	6.0
100					630			1970	2090	2230	2.0
160					0.7901.90.7301.8		2650		2810	3000	1.5
200		±2X2.5%±5%			0.880	3130			3320	3550	1.5
250					0.990	3580			3800	4060	1.3
315					1170	4250			4510	4820	1.3
400					1370	5100			5410	5790	1.1
500					1520	6270			6650	7110	1.1
630					1860	7250			7690	8230	1.0
800					2160	8600			9120	9760	1.0
1000					2430	9860			10400	11100	0.75
1250					2830	12000			12700	13600	0.75
1600					3240	14600			15400	16500	0.75
2000					3820	17200			18200	19500	0.75
2500					44500191400.62340222200.5	2060016.820.0			2180017.821.2	2330019.122.7	0.750.700.70

Technical Parameter for SG(B)10 Series Non-encapsulated Class H Dry-type Transformer

Product Model No.	Connection Group Symbol	Loss W		Impedance Voltage（%）	No-load Current（%）	Overall Dimension (without enclosure) mm							Weight（Kg）
Product Model No.	Connection Group Symbol	No-load Loss R	145℃Load Loss R（W）	Impedance Voltage（%）	No-load Current（%）	L	W	H	L1	L2	d	f	Weight（Kg）
SG10-30/10	Y,yn0D,yn11	190	760	4	2.0	900	1180	880	265	220	550	550	420
SG10-50/10		270	1070		2.0	940	1180	985	295	220	550	550	450
SG10-80/10		370	1480		1.5	985	1180	1055	295	226	550	660	740
SG10-100/10		400	1690		1.5	1010	1180	1135	295	226	660	660	770
SG10-125/10		470	1980		1.3	1060	1180	1175	306	228	660	820	1005
SG10-160/10		540	2280		1.3	1120	1180	1230	312	228	660	820	1015
SG10-200/10		620	2710		1.1	1180	1230	1275	312	238	660	820	1035
SG10-250/10		720	2960		1.1	1290	1230	1330	315	238	660	820	1155
SG10-315/10		880	3730		1.0	1320	1340	1355	315	240	820	1070	1365
SGB10-400/10		980	4280		1.0	1350	1340	1435	315	240	820	1070	1585
SGB10-500/10		1160	5230		1.0	1395	1340	1495	325	258	820	1070	1795
SGB10-630/10		1345	6290		0.85	1450	1340	1550	325	268	820	1070	2265
SGB10-630/10		1300	6400		0.85	1545	1340	1445	325	268	820	1070	1930
SGB10-800/10		1520	7460		0.85	1590	1340	1490	330	273	820	1070	2450
SGB10-1000/10		1770	8760		0.85	1680	1340	1555	330	276	820	1070	2640
SGB10-1250/10		2090	10300		0.85	1710	1470	1635	335	286	820	1070	3170
SGB10-1600/10		2450	12500	6	0.85	1800	1470	1770	350	330	1070	1070	3985
SGB10-2000/10		3050	15500		0.7	1850	1470	1890	350	346	1070	1070	4850
SGB10-2500/10		3600	18400		0.7	1900	1470	2030	365	356	1070	1070	5620

Notes: The Dimension and weight will be changed according to the requirements. These two data in the table will be subject to the factory documents.
